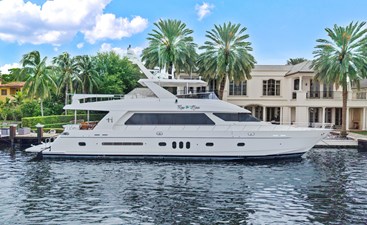

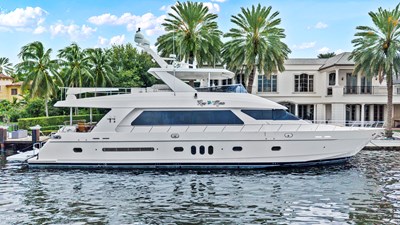

Spacious CAT powered 82’ Hargrave with a large aft deck and walk around side decks. Accommodations include two king size cabins and two twin cabins each with a Pullman berth.  All cabins are ensuite. The Hargrave 82 offers unique pilot house dining plus two al fresco options, the aft deck and two separate seating groups on the huge flybridge.

ROXY MARIA features plenty of exterior areas for sunning on the bow and her open boat deck.

Boarding ROXY MARIA is easy via the port or starboard aft deck boarding gates and a Marquipt Tide Ride ladder.

The aft deck has a large, varnished table and both fixed and loose seating.  Port side steps to the boat deck give easy access.  Walk around side decks make docking easy.

A centered door leads to the Salon with a new laminate sole, large house side windows, cherry joinery and a three cushion sofa to port.  Three upholstered chairs offer additional seating.  To starboard is a pop-up TV and the area’s entertainment electronics.

Going forward a day head is to starboard with a nearly full beam galley to port.  Full size appliances, granite countertop and a very unique forward facing dinette for eight people allow casual dining and a great view forward.  The full helm is forward with steps to bridge aft and steps to the cabins below forward.

The lower deck is arranged with a king size VIP cabin forward with an ensuite head.

Going aft either side of the centerline companionway are mirror image twin cabins each with a Pulman berth off the inboard bulkhead.  Each has a full ensuite head.

Furthest aft is the king size Master suite with ample drawers, locker and a vanity.  Large hull side deadlights provide ample light.  To starboard aft is the two sink head with extra large shower.  To port aft is a walk-in hanging locker.

The Flybridge can be accessed via the pilothouse or aft deck stairs.  A centerline helm and two Stidd chairs plus a raised observation seat are forward.  To port is a walk behind bar and three fixed bar stools.  To port and starboard are dining settees to seat a crowd!  This entire area is under an FRP hardtop.  The Boat Deck and crane are aft.

The Crew area is accessed via a centerline pantograph door.  To starboard is a double berth private cabin with a head and shower to port.

Centerline is the large engine room.

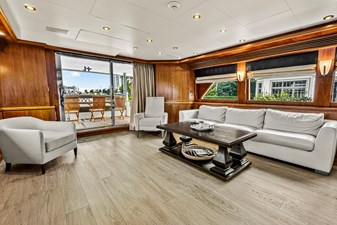

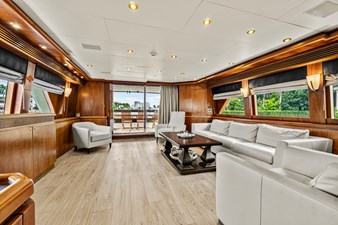

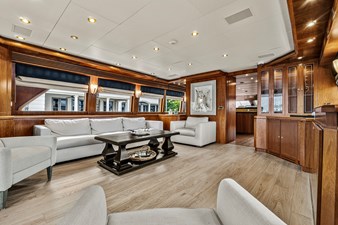

Entered via the Aritex stainless steel trimmed sliding door the Salon has a new driftwood colored wood sole,  To port is a three cushion leather sofa and a large two level coffee table.  Port and starboard are two upholstered occasional chairs.

Forward to port is a larger leather chair to match the sofa.  Roman Shades cover the house side windows with sconce lights on the mullions.  Bult-in cherry corner cabinets aft to port house the Dennon AV receiver and additional storage below.  Forward to port are two additional storage cabinets with a burlwood top.

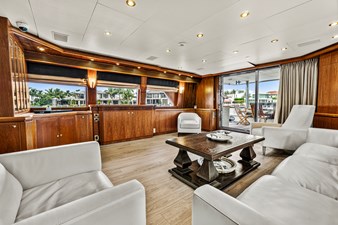

To starboard are a series of six cherry cabinets aft with a centered 60” Samsung TV on an electric lift.  Further forward is a pair of cabinets with two drawers within for dinnerware.  Above the burlwood top is a four door glass cabinet for stemware.  A/C is delivered through a port and starboard valances.  Overhead are 22 LED lights and a 5-channel speaker system.

The Day Head is next forward to starboard with a marble sole, cherry bow front vanity with two cabinet doors below and a China undermount sink above.  House side windows with Roman Shades offer plenty of light.  The toilet is a full size Headhunter model.  Mirrors are above the sink and on the overhead.  Also in the Day Head are three LED overhead lights and an exhaust fan.

The Galley is next forward from the Salon and Day Head, is to port and is U-shaped.  It is open to the large C-shaped dining settee forward and the lower helm for a very open feeling.

Features of the galley include:

• Newer GE double door fridge freezer with water and ice in the door
• GE Profile built-in oven
• Kenmore trash compactor
• GE Profile full size dish washer
• GE Profile 5-burner glass cooktop
• Granite countertops
• Large undermount enamel double sink
• Removable spray faucet
• Instahot water
• Seagull filtered water tap
• Lonseal ‘teak look’ flooring
• Cherry cabinet doors
• (12) cherry cabinet doors
• 5-shelf double door pantry to starboard
• (4) cherry drawers
• (11) overhead LED lights
• Main breaker panel
• Stereo speakers

Unique C-shaped dining settee faces forward for a great view.  Often thought to be a Pacific northwest design it works well in this yacht!  It easily seats 6-7 people but has a flip-up 12” wing forward to allow the two Stidd helm chairs to use the table.  The 65” by 40” varnished cherry table sits on two cherry pedestals.  The seating surface is Ultraleather and the backrest is embossed alligator hide vinyl.  To port is a 32” Samsung TV.  Overhead are 10 ED lights and two stereo speakers.

Open to and on the same level as the dining area is the full lower station.  This area has the same Lonseal ‘teak look’ flooring.  Nine starboard steps to the flybridge are to starboard.  Port and starboard are pantograph side deck doors. Six cherry cabinets and two drawers offer storage.

The helm itself is centered and has a black Ultraleather chart flat to port.  A 3-panel windshield and side windows provide a view from the helm.  Two Stidd chairs with foot rests offer seating and can swivel to add to the dining seating capacity.

• (1) Garmin 15” GPSMAP 8015
• (3) Garmin 15” GPSMAP 8215
• (2) CAT LCD engine displays
• Garmin GMR10 data 4” screen
• (6) place bilge pump panel with alarm and test toggle
• Seafire fire suppression system power indicator
• Nav/anchor light instrument light toggle switches
• Icom IC-M602 VHF
• Exalto wiper/washer controls
• (2) ACR searchlight controls
• Ritchie 3 compass
• Bennett trim tab controls
• Simrad AP25 autopilot
• Cherry and stainless helm wheel, 24”
• Horn control
• Synchronizer control
• Glendinning throttle controls
• Thruster shut-off control
• Naiad bow and stern thruster controls
• Naiad MultiSea II stabilizer control
• Maxwell windlass control
• Xantrex inverter display
• Back-up engine control switch
• Port & Stbd ignition switches with start/stop and low RPM switches
• Recently recovered helm console in Ostrich embossed black vinyl
• Air conditioning control panel
• Headhunter Tank Sentry display gauge
• Holding tank discharge switch
• A/C vent
• USB port
• Cable outlet
• (2) Stidd helm chairs with foot rests
• WEMA water tank gauge

(4) WEMA fuel tank gauges:

• Engine room mid tank
• Engine room stbd wing tank
• Engine room port wing tank
• Forward tank

From the forward starboard side of the companionway are eight Lon Seal tread steps with step lights to the lower deck.  Facing the steps is a mirror with granite topped curved cabinet with two storage cabinets below.  Up two steps is the starboard side laundry center with a GE washer/dryer.  Forward is the centerline ensuite VIP.

Going aft are twin port and starboard ensuite cabins with twin berths and an inboard Pullman berth

All the way aft is the full beam king size master cabin with a head and large shower to starboard and a port side walk-in hanging locker.

Entered via the aft end, a king size berth is on centerline.  An upholstered headboard is affixed to three mirrored panels.  Each side has a sconce light as well as an LED reading light in the rounded soffit above.

Port and starboard hull side cabinets (4 each side) serve as a nightstand.  Also on each side are four mirrored cabinets.  Port and starboard steps give easy access to the raised berth.

At the foot of the berth are two large drawers and rope lighting around the toe kick.  Each side has a cedar lined auto lit hanging locker.

To port is the entrance to the head.  To starboard is a 18” Insignia TV and four cabinets below.

Above are two large deck hatches for natural light and six LED light fixtures.  Above in the cabin are two stereo speakers and digital A/C controls.  The sole is carpeted.

The bow front vanity has two storage cabinets below and a china undermount sink in the marble countertop.  Two mirrored medicine cabinets are above.  The toilet is a full size Headhunter model affixed to a teak and holly sole.

The extra large shower has a clear glass door, marble seat, two lockers and a handheld and wall mountable fixture.

Also in the head are two additional storage cabinets, five LED overhead lights, an A/C vent, a heated towel rack and a mirrored overhead.

Entered from the aft end, two single berths are arranged fore and aft with a two drawer nightstand between.  Each berth has two drawers below.  Above the inboard berth is an equal size Pullman berth.  Above the outboard berth and six cherry cabinets and Roman Shades concealing a large opening stainless steel porthole.  Aft is a cedar lined auto lit hanging locker. A Sharp 15” LED TV and a Pioneer AM/FM/XM stereo face the berth.

Also in the cabin are digital A/C controls, four overhead LED lights, a directional LED reading light for the two lower berths, a carpeted sole and two stereo speakers.

Aft is the entrance to the ensuite head.

The vanity has three cabinets below with an undermount Kohler sink in the marble countertop.  Above are three small, mirrored cabinets with four large cabinets aft.  The full size Headhunter toilet sits on a teak and holly sole.

The large shower has a clear glass door, a light, a heated towel bar and a handheld or wall mounted fixture.  There are three LED lights in the mirrored overhead.

Entered from the aft end, two single berths are arranged fore and aft with a two drawer nightstand between.  Each berth has two drawers below.  Above the inboard berth is an equal size Pullman berth.  Above the outboard berth and six cherry cabinets and Roman Shades concealing a large opening stainless steel porthole.  Aft is a cedar lined auto lit hanging locker. A Sharp 15” LED TV and a Pioneer AM/FM/XM stereo face the berth.

Also in the cabin are digital A/C controls, four overhead LED lights, a directional LED reading light for the two lower berths, a carpeted sole and two stereo speakers.

Aft is the entrance to the ensuite head.

The vanity has three cabinets below with an undermount Kohler sink in the marble countertop.  Above are three small, mirrored cabinets with four large cabinets aft.  The full size Headhunter toilet sits on a teak and holly sole.

The large shower has a clear glass door, a light, a heated towel bar and a handheld or wall mounted fixture.  There are three LED lights in the mirrored overhead.

Entered centerline on the forward bulkhead a king size berth is centered aft.  Three mirrored panels form a headboard with sconce lights port and starboard and dedicated reading lights in the soffit above.  Each side of the berth has two large drawers with rope lighting in the toe kick.  Port and starboard are Burlwood topped three drawer nightstands.

The starboard side of the cabin has the cabins head entrance and a chest of nine bow front drawers below three large oval deadlights covered with Roman Shades.

Next forward is a cedar lined auto lit hanging locker.

The forward bulkhead has a 32” Samsung TV with four cabinet doors below.  To port is a bow front hinged top vanity with a stool and eight drawers either side.  Above are matching deadlights covered with Roman Shades.

Aft is a walk-in hanging locker with cabinets, shelves and shoe racks all cedar lined.  Also in this area is a digital safe.

Above are twelve LED lights, surround sound speakers, a Fusion stereo and digital A/C control.  The sole is carpeted.

The Master head is to starboard and has a marble sole that matches the countertop.

The double bow front vanity has five cabinet doors below and two undermount china sinks.  Above are four large, mirrored medicine cabinet doors.

The toilet is a full size Headhunter model.  Above the head are four cherry cabinet doors and an opening stainless steel porthole behind Roman Shades.

Also in this area is a heated towel bar and four LED lights in the mirrored overhead.

• Non-skid fiberglass decks
• Centered stainless steel anchor chute/roller
• Maxwell 3500 24V windlass
• Up/down foot switches for windlass
• Oversized bow cleats and fairleads
• (2) Anchor locker hatches
• Low level LED lighting
• (2) JL audio stereo speakers
• 3-person bow seat with removable cushions
• 3-person sun lounge with removable cushions
• (3) Pantograph windshield wipers
• (2) Deck hatches info VIP cabin
• (2) Hinged dunnage boxes in trunk cabin
• Ample freeing ports
• Raised FRP bulwarks with stainless steel bow rail

• FRP non-skid decks
• FRP raised bulwark with stainless steel handrails
• Twin spring line cleats and fairleads
• Port and starboard Pantograph doors
• Port and starboard hinged gates forward with rail breaks
• Port and starboard CCTV cameras
• (6) port and (6) starboard overhead LED blue lights
• Frameless house side windows

• Port and starboard hinged boarding gates with railbreaks
• Teak over FRP decking
• Emergency engine room hatch centerline
• 9’ x 3’ varnished boat shaped teak table slides in/out set upon two stainless steel pedestals with two central leaves
• Bench seating for 4-5 people with removable cushions and storage below
• (4) teak dining chairs
• (9) port side steps to boat deck with storage below
• Stbd side storage cabinet with varnished top and two varnished cabinets above
• Port and starboard wing stations with engine controls, start/stop and bow and stern thruster controls
• (10) overhead LED blue lights
• Port and starboard CCTV cameras
• Centered CCTV camera
• (2) JL audio speakers
• Port side steps with gate to swim platform
• Ship’s bell
• Corner fairleads
• Stern flood lights in overhead
• Hinged stainless steel gate to swim platform
• (5) teak tread steps to swim platform with step lights
• Stainless steel handrail around aft deck
• (2) stainless steel boat deck support poles
• 8-step Marquipt Tide Ride ladder
• Large port and small starboard Hargrave Marquipt storage lockers
• (2) Maxwell 2200 stern capstans

• FRP integral swim platform deck
• 3.5’ x 20’ hydraulic swim platform
• Tender chocks on swim platform
• (4) removable stainless steel hoop rails with one storage receptacle
• (2) fold-up tender cleats
• Hot and cold shower in port side cabinet
• (4) stainless steel handrails
• Large starboard side storage locker
• Centerline pantograph engine room door
• Hinged hatch to rudder area
• Emergency steering deck fitting for tiller

• FRP non-skid decking
• Starboard side C-shaped seating for 5-6 people with removable cushions, cover and Hargrave signature hinged storage below.  70” FRP dining table with twin stainless steel pedestals
• Port side – L-shaped seating for 3-4 people with removable cushions, cover and Hargrave signature hinged storage below 60” FRP dining table with twin stainless steel pedestals.
• FRP radar arch with TV mounts port and starboard.
• Port side curved bar with a two level Corian bar top with sink, three mounted bar stools, three storage cabinets and a Raritan icemaker.
• Fusion stereo control
• Unique port side seat with reversable back rest and storage below with a Danby drink refrigerator
• FRP hardtop with two stainless steel support poles
• (18) overhead LED lights
• (4) JL stereo speakers
• (2) CCTV cameras
• EPIRB
• Venturi windscreen with hand rail
• (1) EZ2CY enclosure piece at helm
• Unique Bimini shade over electronics
• Chart flat with plexi cover
• (2) Storage cabinets
• Stbd side hinged hatch with steps to below

• (2) Stidd helm chairs
• Stainless helm wheel, 24”
• Helm cover
• (4) Garmin 17” GPSMAP 8617
• (2) CAT engine displays
• Garmin AIS 600
• Garmin GM120 data 4” screen
• Garmin GMR18 xHD radar
• Garmin GSD 24 Black Box sounder
• Start/stop controls with low RPM and synchronizer – port & stbd engines
• (2) ACR searchlight controls
• Bilge pump indicator with high water alarm
• (2) A/C vents
• (2) stainless steel cup holders
• Air conditioning control
• Icom VHF IC-M602 with a remote mount mic
• Maxwell windlass control
• Trim tab controls
• Simrad AP25 autopilot
• VDO rudder indicator
• Horn control
• Naiad stabilizer controls
• Glendinning throttle controls
• Naiad bow and stern thruster controls
• Thruster breaker
• (6) protected rocker switches with covered outlet
• Icom Command Mic II from lower helm VHF
• 5” Magnetic compass on FB

• FRP decking
• Quick Lift 1600 lb. power rotation and davit with pyramid base
• Stainless steel safety railing around perimeter
• (2) clip on rod holders
• Sliding glass cover to aft deck stairs
• Safety rail around stairs
• Starboard side FRP cabinet for large top opening freezer
• Port side FRP cabinet with (2) Gaggenau cooktops under hinged FRP cover
• (2) clamp on rod holders at aft rail
• Glendinning wired remote engine control plug in

• Hargrave FRP mast
• (2) Revere Offshore Commander 2.0 4-person life rafts with hydrostatic release
• Garmin 6’ open array radar scanner
• Garmin 18” Radome
• (2) 16’ VHF antennas
• (2) ACR searchlights
• (2) Garmin GPS sensors
• Trumpet horns
• Hailer horn - forward
• Hailer horn - aft
• CCTV camera - aft facing
• (2) boat deck flood lights
• (2) Intellian domes

Entered centerline through the pantograph transom door and four steps down is the crew area.  The sole is teak and holly.  To starboard is the captain’s cabin.  There is a double berth fore and aft against the outboard bulkhead.  Outboard is an opening stainless steel porthole behind Roman Shades and there storage lockers.  Aft is a cedar lined hanging locker with two drawers below.  Also in the cabin is a nightstand with three drawers and two additional drawers under the bed, four overhead lights and two stereo speakers.

The centerline companionway has a chest of four drawers, a Black and Decker microwave and two additional cabinets above.  Aft is a large cedar lined locker.  Forward is a large two-door storage locker for parts and on centerline the Hargrave stainless steel engine room door.

To port is the Captain’s head with a bow front vanity, two cabinets below and a Kohler china undermount sink in the marble top above.  A mirrored medicine cabinet is above the sink.  The toilet is a full size Headhunter model set on a teak and holly sole.  The generous shower has a bi-fold glass door, a marble shelf, opening porthole with Roman Shade and a handheld or wall mountable fixture.  Also in the head are five overhead LED lights.

• Twin CAT C-30’S 1550hp each
• ZF 2050A transmissions with 2.467 to 1 ratio
• Sea chest with Groco strainers
• White perforated insulation panels in engine room
• Double insulated engine room bulkheads
• Bennett double piston trim tabs
• Aritex watertight engine room door
• Naiad stabilizer system Model 302 with 9 sq. ft. fins
• Twin hydraulic pumps on each engine
• Naiad 36 hp bow thruster
• Naiad 36 hp stern thruster
• (4) Delta-T fans on engine room demister system
• Algae ‘X’ fuel system
• Double Racor fuel filters for both engines with vacuum gauges
• (2) Racor 500 filers for generators
• Seafire 105lb. engine room fire suppression system
• (6) auto/manual bilge pumps with high water alarms
• Full CAT engine gauges for each engine
• Jabsco emergency crash pumps off main engine with 3 pickups, engine room, lazarette and master cabin bilges
• Reverso 6-point oil change system
• Fuel transfer system with Fill-Rite counter with Oberdorfer oil pump
• (4) 3-ton Cruisair compressors for A/C system
• Tides Marine SureSeal shaft seals and rudder seals
• (3) CCTV cameras
• Sea Recovery watermaker (600 GPD)
• NuTone central vacuum system
• (4) Fluorescent engine room lights
• (4) DC incandescent lights
• Headhunter waste treatment system
• SeaStar hydraulic steering system
• Sight gauges on outboard fuel tanks
• (2) CAT coolant recovery bottles
• (2) generator coolant recovery bottles
• Engine room emergency escape hatch with fold down ladder
• Engine room fresh water spigot and hose
• Fuel manifold system
• Underwater exhaust with idle bypass
• Stainless steel safety rails around each engine
• (2) A/C fresh water pumps for circulating chilled water
• (1) A/C salt water cooling pump
• Deck salt water washdown pump
• Manual bilge pump
• (2) generator exhaust gas separators
• 4” Aquamet 22 shafts
• 42.5” x 40.5” 5 blade propellers
• (2) Headhunter Mach5 A/C fresh water pumps
• Headhunter X-Caliber DC fresh water pump
• (6) DC auto/manual bilge pumps
• (4) DC sump pumps for showers
• (2) fresh water accumulator tanks
• Hot water circulation pump

Fuel tanks as follows:

• (2) 225 gallon tanks in engine room outboard
• (2) 471 gallon tank in engine room outboard
• (2) 100 gallon tanks in master cabin sole
• (1) 1380 gallon tank in centerline companionway

Water tanks as follows:

• (1) 400 gallon tank below VIP berth sole
• (1) 200 gallon tank below VIP berth
• (2) Torrid 20 gallon water heaters

• 12/24 Volt DC electrical system
• 120/240 Volt AC 60Hz electrical system
• 32kW Northern Lights generator in sound shield – port 3936 hours (9/21/26)
• 32kW Northern Lights generator in sound shield – starboard 4086 hours (9/21/26)
• (4) 200 amp hour engine start batteries in series 24V
• (4) 200 amp hour service batteries in series 24V
• (2) 200 amp hour service batteries for windlass 24V
• (2) 120 amp hour generator batteries 12V
• (2) Dolphin battery chargers 100 amp 24V for house
• Pronautic battery charger 80 amp 24V for engine
• Charles battery charger 30 amp 12V for generators
• (2) 25 kVA Acme electric isolation transformers
• (3) 100 amp power supply for lighting circuits

Main engine electrical panel with:

• 8 position analog volt meter
• (18) breaker protected DC circuits 12/24V
• Digital DC volt and amp meter

Pilothouse electrical panel with:

• 14 breaker protected DC circuits 12/24V
• Digital volt and amp meter 12/24V

110/220V crew area panel with:

• (12) 220V breaker protected circuits
• Digital volt and amp meter
• (30) 110V breaker protected circuits
• (2) digital volt and amp meters

110/220V engine room panel with:

• (24) 220V protected circuits
• Digital volt and amp meter
• (10) 110V protected circuits
• (2) digital volt and amp meters

Power management panel for:

• AC system1: port gen, stbd gen, bow cord, stern cord
• AC system2: port gen, stbd gen, bow cord, stern cord
• (4) battery shut off switches
• (2) battery parallel switches

• Actual LOA - 83’ 1” as built, plus 3.5’ hydraulic platform for an approx. LOA of 87’
• Salon headroom 6’ 6”
• Master cabin headroom 6’ 6”
• Engine room headroom 6’ 10”
• Flybridge headroom 7’ 1”

Priced aggressively, ROXY MARIA is very seriously for sale.  She has a great layout including a full lower station with a unique forward facing casual dining option forward of the open galley.
